Viper VST XL Product Spec

Viper VST XL 550

VST XL 550
Case Length: 2.87in / 72.8mm
Case Diameter: 1.42in/36.00mm
Shaft Length: 3.5in/89mm
Shaft Extension: 0.58in/14.8mm
Shaft Size: 5mm
Weight: 9.45oz/268g
Poles: 2 Poles

Viper VST XL 550

VST L 550
Case Length: 2.67in /67.8mm
Case Diameter: 1.42in/36.00mm
Shaft Length: 3.5in/89mm
Shaft Extension: 0.58in/14.8mm
Shaft Size: 5mm
Weight: 8.71oz/247g
Poles: 2 Poles
Viper VST XL Media
Viper VST-XL Brushless Motor Viper VST-XL Brushless Motor Viper VST-XL Brushless Motor
Viper VST XL Product Spec

Tested and developed under the most extreme racing conditions to suit the requirements of professional drivers and weekend club racers alike, the Viper VST 4.5XL and 5.5XL 550 class brushless motors are the perfect choice for your 4x4 short course racing machine. Viper VST XL motors are ROAR approved for the 2011 season.

Based off the proven Viper VST 540 platform, the XL motors offer the most recent in Viper engineering and design. The 72mm long can contains a butter smooth two pole power band, fully sensored design with integrated internal temperature sensor, and top grade ball bearings for long life and low maintenance. The VST-XL series will provide you with the precision and control required on slippery surfaces, and the raw power necessary to win under high traction race conditions. The XL series are perfectly matched to the Viper VTX10R speed control and will surely be an unbeatable combo.

VIPER R/C VST-L Series 550 Class Sensor Brushless Motor



Based off the 2011 Hot Rod Shootout Pro 4x4 class championship of VST-XL, Viper R/C extends the popular 550 class motor with the new VST-L series. The shorter can length (67.8mm) allows for no chassis modification to fit in tighter areas. The lighter weight and shorter rotor design will offer quicker throttle response and yet the smoothness. The VST-L series is making the VST series family a completed product lineup!!

Backed by our 180 day factory warranty, you can expect your VST-XL & L motors to serve your power desires for countless races to come.

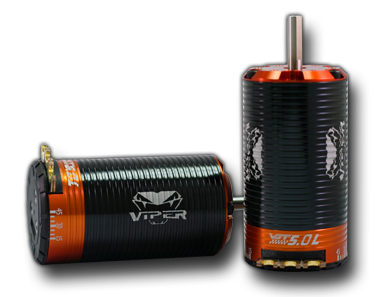

VST L 5.0 and 6.0 Sensored Brushless Motors
Pro 4x4 trucks require more power which quickly turns into heat and loss of efficiency. Viper VST XL and VST L motors are designed for power hungry Pro 4x4 trucks to ensure the lowest temps, more efficient and the most reliable running R/C racing systems.

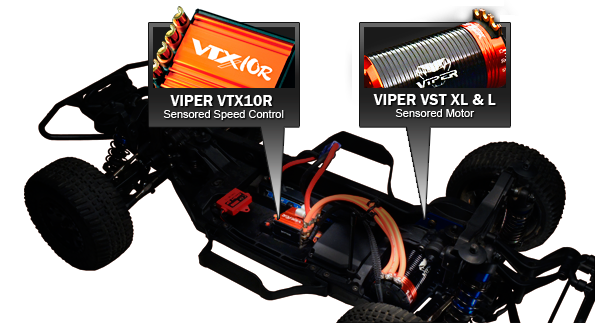

Designed for racing, the VST XL, VST L and VTX10R provide the smoothest, most efficient power plants. When set up correctly we have seen longer runtimes, faster trucks and more low end power when you pair the VST XL or VST L with the VTX10R ESC.
