Viper VST XL Product Spec

Viper VST Series
Case Length: 2.12in/52.80mm
Case Diameter: 1.42in/36.00mm
Shaft Length: 2.6in/13.8mm
Shaft Extension: 0.58in/14.8mm
Weight: 6.35oz/180g
Poles: 2 Poles
Model Turns KV Watts
VST2.5 2.5T 12600 713
VST3.5 3.5T 9500 617
VST4.5 4.5T 7400 512
VST5.5 5.5T 6300 470
VST6.5 6.5T 6100 441
VST7.5 7.5T 4400 392
VST8.5 8.5T 4000 304
VST9.5 9.5T 3600 270
VST10.5 10.5T 3100 255
VST13.5 13.5T 2400 203
VST17.5 17.5T 1900 157
VST21.5 21.5T 1500 101
VST25.5 25.5T 1400 90
Viper VST XL Media
Viper VST Brushless Motor Viper VST Brushless Motor Viper VST Brushless Motor
Viper VST Brushless Motor Viper VST Brushless Motor Viper VST Brushless Motor

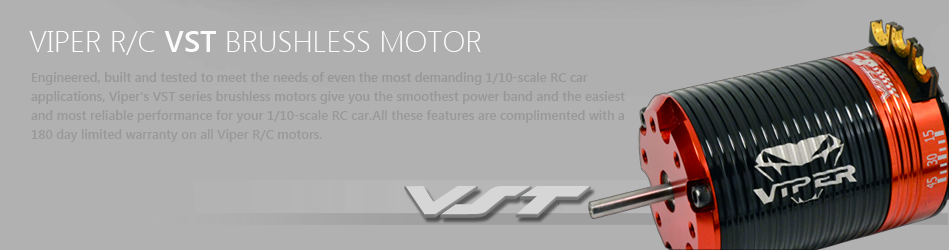

Viper VST Brushless Motors
Viper R/C Solutions' VST series sensored brushless motors are your solution for smooth and efficient performance, durability, versatility and quality. Available in a wide range of turns from 2.5T to 25.5T, the VST also features high precision ball bearings for superior performance and a longer life, a rebuildable design and optional rotors for expanded tuning options.

Quality craftsmanship, superior materials and a commitment to rigorous testing are at the heart of Viper R/C Solutions' product philosophy, so your VST motor not only gets you running but keeps delivering the power you need to get the most out of your RC car in even the most demanding conditions. Your VST motor's high precision CNC-machined 6061 T6 billet aluminum ribbed can is designed to provide the best protection and cooling, the ultra-low resistance high-current soldering tab system allows for trouble-free connections and easy wiring. Plus your VST motor is compatible with most ESCs on the market.

Engineered, built and tested to meet the needs of even the most demanding 1/10-scale RC car applications, Viper's VST series brushless motors give you the smoothest power band and the easiest and most reliable performance for your 1/10-scale RC car.

All these features are complimented with a 180 day limited warranty on all Viper R/C motors.
